Details

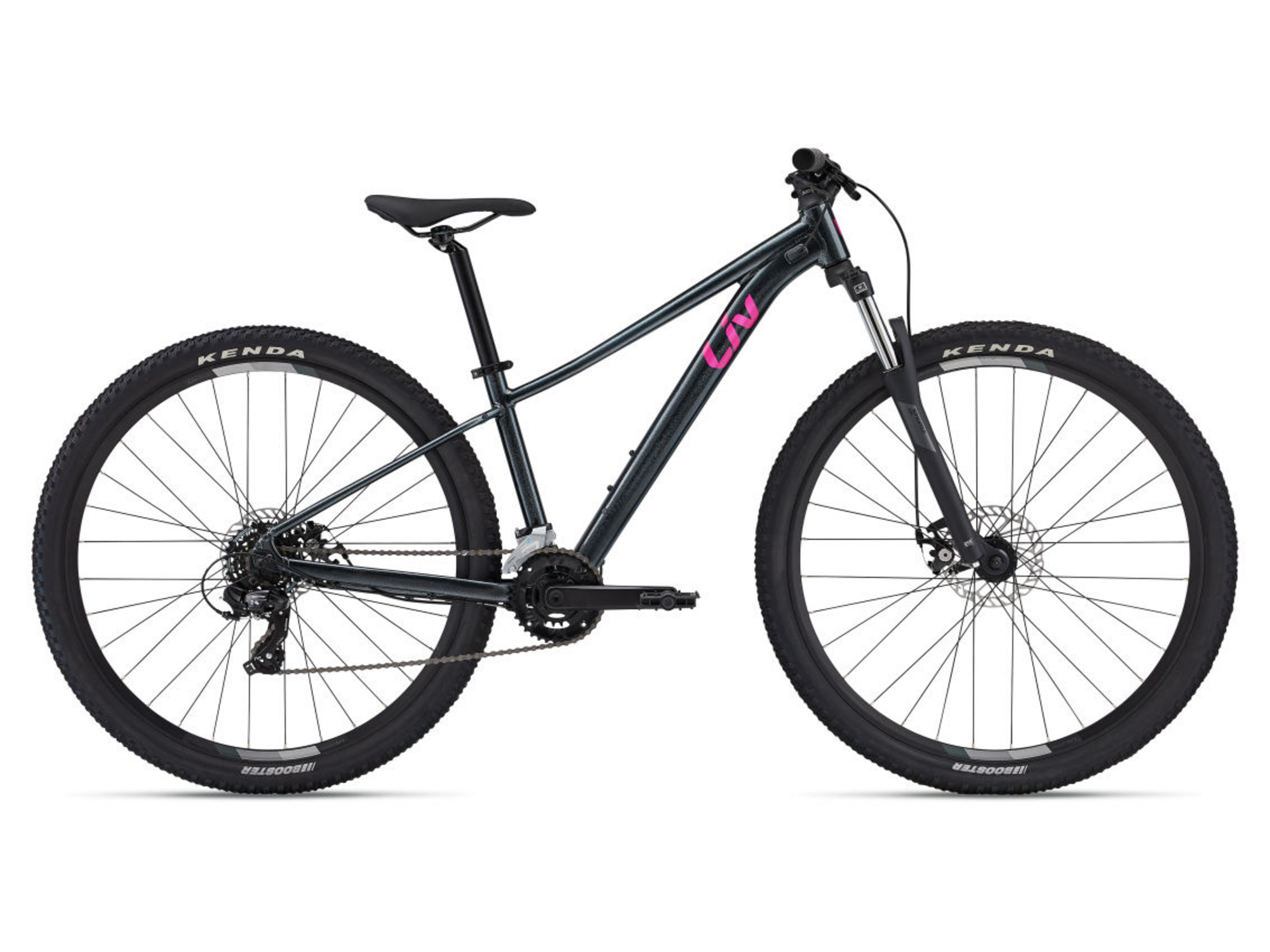

GET ON THE DIRT AND RIDE YOUR WAY TO YOUR FIRST SINGLETRACK. TEMPT IS THAT FRIEND THAT OPENS A WHOLE NEW WORLD TO YOU.
KEY PERFORMANCE FACTORS:
Confidence Inspiring
Perfect as your first mountain bike, the ALUXX-grade aluminum frame is lightweight, capable, and durable.
Versatile
Tempt’s performance-minded yet comfortable geometry gives it the versatility for both commutes around campus and off-road rides.
XC Control
A suspension fork offers control, comfort, and stability over bumpy terrain. Depending on frame size, the fork comes with 80mm or 100mm of travel.
TECHS & FEATURES
ALUXX ALUMINUM TECHNOLOGY
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
XS (27.5") | S (27.5") | S (29") | M (27.5") | M (29") | ||
---|---|---|---|---|---|---|
A | SEAT TUBE LENGTH (mm) | 325 | 365 | 370 | 405 | 420 |
A1 | SEAT POST INSERTION DEPTH (mm) | 285 | 320 | 320 | 360 | 375 |
B | SEAT TUBE ANGLE | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
C | TOP TUBE LENGTH (mm) | 542 | 571 | 570 | 594 | 590 |
D | HEAD TUBE LENGTH (mm) | 95 | 100 | 90 | 110 | 95 |
E | HEAD TUBE ANGLE | 68.0° | 68.0° | 68.5° | 68.0° | 68.5° |
F | FORK RAKE (mm) | 40 | 42 | 51 | 42 | 51 |
G | TRAIL (mm) | 102 | 98.9 | 94.3 | 98.9 | 94.3 |
H | WHEELBASE (mm) | 1072 | 1104 | 1119 | 1128 | 1139 |
I | CHAIN STAY LENGTH (mm) | 440 | 440 | 455 | 440 | 455 |
J | BOTTOM BRACKET DROP (mm) | 40 | 45 | 55 | 45 | 55 |
K | STACK (mm) | 554 | 579 | 596 | 588 | 601 |
L | REACH (mm) | 383 | 405 | 399 | 425 | 418 |
M | STAND OVER HEIGHT (mm) | 663 | 686 | 705 | 708 | 737 |
N | HANDLEBAR WIDTH (mm) | 730 | 750 | 750 | 750 | 750 |
O | STEM LENGTH (mm) | 40 | 40 | 40 | 50 | 50 |
P | CRANK LENGTH (mm) | 165 | 165 | 170 | 170 | 170 |
Q | WHEEL SIZE | 27.5" | 27.5" | 29" | 27.5" | 29" |
XS (27.5") | 4’11” to 5’4” |
---|---|
S (27.5") | 5’2” to 5’7” |
S (29") | 5’2” to 5’7” |
M (27.5") | 5’5” to 5’9” |
M (29") | 5’5” to 5’9” |
Specs
Pedals | MTB caged |
---|---|
Fork | SR Suntour XCE, QR, steel steerer 27.5" XS: 80mm, S: 100mm, M: 100mm 29" S: 100mm, M: 100mm, L: 100mm |
Hubs | alloy, sealed bearing |
Rims | 27.5": Giant GX03V 27.5", alloy, double wall, 21mm inner width 29": Giant GX03V 29", alloy, double wall, 21mm inner width |
Stem | Giant Sport, 7-degree 27.5" XS: 40mm, S: 40mm, M: 50mm 29" S: 40mm, M: 50mm, L: 50 |
Chain | KMC Z7 |
Frame | ALUXX-grade aluminum, disc |
Tires | 27.5": Kenda Booster 27.5x2.4, wire bead 29": Kenda Booster 29x2.4, wire bead |
Brakes | TKB-172, mechanical [F]160mm, [R]160mm rotors |
Saddle | Liv Sport |
Spokes | stainless, 14g |
Crankset | ProWheel Forged, 22/36, chain guard 27.5" XS: 165mm, S: 165mm, M: 170mm 29" S: 170mm, M: 170mm, L: 175mm |
Seatpost | Giant Sport, 30.9mm 27.5" XS: 300mm, S: 300mm, M: 375mm 29" S: 375mm, M: 375mm, L: 375mm |
Shifters | Shimano SL-M315, 2x7 |
Handlebars | Giant Connect Trail, 31.8mm 27.5" XS: 670mm, S: 670mm, M: 750mm 29" S: 670mm, M: 750mm, L: 750mm |
Tape/Grips | Giant Sole-O |
Brake Levers | RS360A, mechanical |
Bottom Bracket | cartridge |
Rear Derailleur | Shimano Tourney |
Front Derailleur | Shimano FD-M315 |
Cassette/Freewheel | Shimano HG200-7, 12-32 |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black Diamond / Small / 29-inch | 4712878975330 | 1101008124 | 24T23661781D |
Black Diamond / Small / 27.5-inch | 4712878976221 | 1101010124 | 24T21938551D |
Black Diamond / Medium / 27.5-inch | 4712878976238 | 1101010125 | 24T21335048D |
Black Diamond / Medium / 29-inch | 4712878975347 | 1101008125 | 24T23806368D |
Black Diamond / X-Small / 27.5-inch | 4712878976214 | 1101010123 | 24T22368035D |
